Startech 4 Port USB3.1 PCIe Card 3x USBA 1x USBC
Product Code: 8STPEXUS313AC2V
Faster USB performance
When multiple devices are connected, traditional single-bus USB cards share the maximum bandwidth between all ports. By employing two host controller chipsets, shared across two ports rather than four, this 4-port PCIe to USB 3.1 card dedicates up to 10Gbps for each set of two USB ports. It reduces performance bottlenecks and doubles your total available bandwidth to 20Gbps.
With higher data throughput support, the card is ideal for external hard drives, hard drive enclosures, and large external storage devices. It lets you access multiple devices simultaneously for read and write access.
Shared bandwidth
The 4-port USB 3.1 controller card adds dual independent channels to your computer and shares 10Gbps of bandwidth between two USB ports.
Each set of two ports shares a combined bandwidth of 10Gbps. If a single device is accessing the channel, the card will provide data transfer rates of up to 10Gbps to the device. If two devices are accessing the channel simultaneously, the 10Gbps of bandwidth will be shared between both devices.
The PEXUS313AC2V is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Category
PCI Cards
Manufacturer StarTech.com

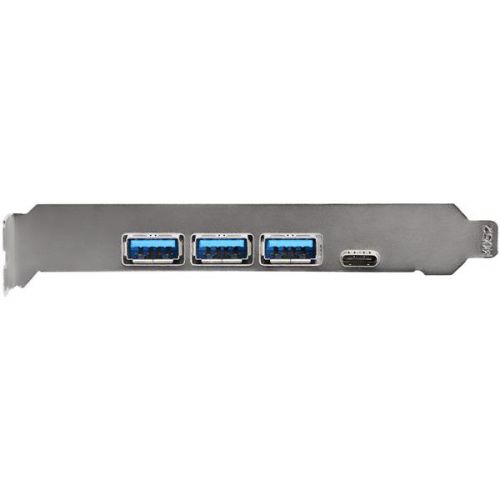

- Add three USB-A and one USB-C external USB 3.1 ports on two independent bus channels
- Transfer files and access USB 3.1 devices faster, with up to 10Gbps throughput
- Connect large external storage solutions: optional LP4 or SATA power connector provides up to 900mA per USB port
- Add room for more devices on your current system
- Compatible with older USB 3.0 and USB 2.0 devices
Description
Faster USB performance
When multiple devices are connected, traditional single-bus USB cards share the maximum bandwidth between all ports. By employing two host controller chipsets, shared across two ports rather than four, this 4-port PCIe to USB 3.1 card dedicates up to 10Gbps for each set of two USB ports. It reduces performance bottlenecks and doubles your total available bandwidth to 20Gbps.
With higher data throughput support, the card is ideal for external hard drives, hard drive enclosures, and large external storage devices. It lets you access multiple devices simultaneously for read and write access.
Shared bandwidth
The 4-port USB 3.1 controller card adds dual independent channels to your computer and shares 10Gbps of bandwidth between two USB ports.
Each set of two ports shares a combined bandwidth of 10Gbps. If a single device is accessing the channel, the card will provide data transfer rates of up to 10Gbps to the device. If two devices are accessing the channel simultaneously, the 10Gbps of bandwidth will be shared between both devices.
The PEXUS313AC2V is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specifications
Lead Time
1
Brand
StarTech.com
Capacity
4 Ports
Categories
Computer Components
Category
PCI Cards
Connector Type
1 - PCI Express x4 Male
Dimensions
85x126x20mm
External Ports
3 - USB 3.1 USB Type-A (9 pin, Gen 2, 10 Gbps) Female, 1 - USB Type-C (24 pin) USB 3.1 (10Gbps) Female
Form
Adapter Card
Internal Ports

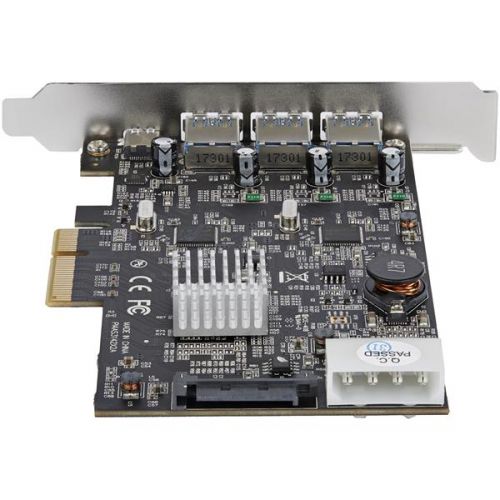

1 - LP4 (4 pin; Large Drive Power) Male, 1 - SATA Power (15 pin) Plug
Manufacturer
StarTech
Type
PCI Cards
Warranty
2 Year Warranty
Weight
81g
