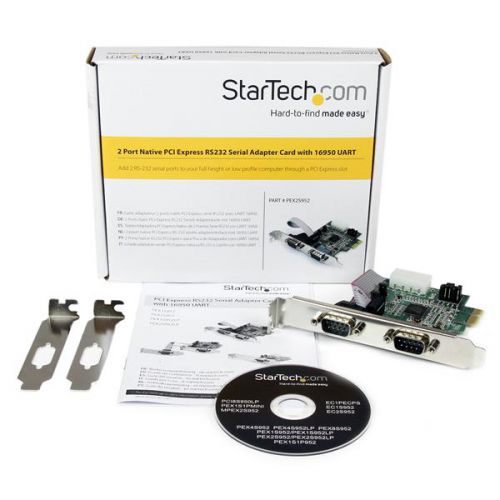

StarTech 2 Port Native PCIE RS232 Serial Card
Product Code: 8STPEX2S952
The adapter card is based on a native single chip design, that allows you to harness the full capability of PCI Express (PCIe) - providing optimum reliability and speed while reducing the load applied to the CPU by as much as 48% over conventional (bridge chip) serial cards.
The RS232 Serial Adapter Card is compatible with a broad range of operating systems, including Windows® and Linux (Kernel 2.6.11 to 4.11.x).
Plus, the adapter card includes an optional half-height/low profile bracket that allows the card to be installed in virtually any computer case - making it that much easier to add serial ports to a PCI Express enabled computer, regardless of the size of the computer case.
Category
PCI Cards
Manufacturer StarTech.com
- Two high speed RS-232 serial ports with data transfer rate up to 460.8 Kbps
- Compliant with PCI Express base specifications revision 1.0a
- Includes half-height/low profile mounting bracket
- Selectable power output on pin 9 for the serial port
- Native single-Chip, single lane PCI Express
- High Performance Dual Channel Oxford 950 UART
Description
The adapter card is based on a native single chip design, that allows you to harness the full capability of PCI Express (PCIe) - providing optimum reliability and speed while reducing the load applied to the CPU by as much as 48% over conventional (bridge chip) serial cards.
The RS232 Serial Adapter Card is compatible with a broad range of operating systems, including Windows® and Linux (Kernel 2.6.11 to 4.11.x).
Plus, the adapter card includes an optional half-height/low profile bracket that allows the card to be installed in virtually any computer case - making it that much easier to add serial ports to a PCI Express enabled computer, regardless of the size of the computer case.
Specifications
Lead Time
1
Brand
StarTech.com
Categories
Computer Components
Category
PCI Cards
Connector Type
1 - PCI Express x1 Male
Dimensions
65x90x20mm
External Ports

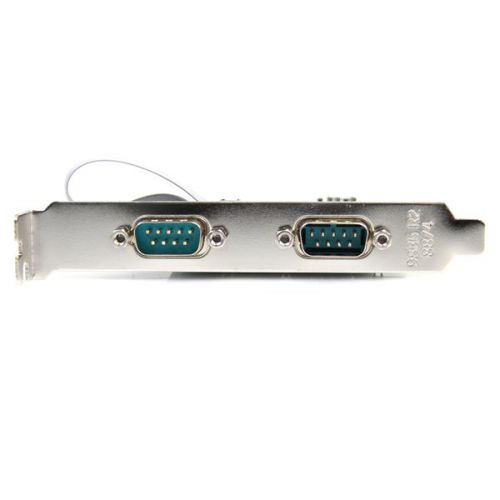

2 - DB-9 (9 pin, D-Sub) Male
Form
Serial Card
Internal Ports
1 - LP4 (4 pin; Molex-type Large Drive Power) Male
Manufacturer
StarTech
Type
PCI Cards
Warranty
Lifetime Limited Warranty
Weight
60g
