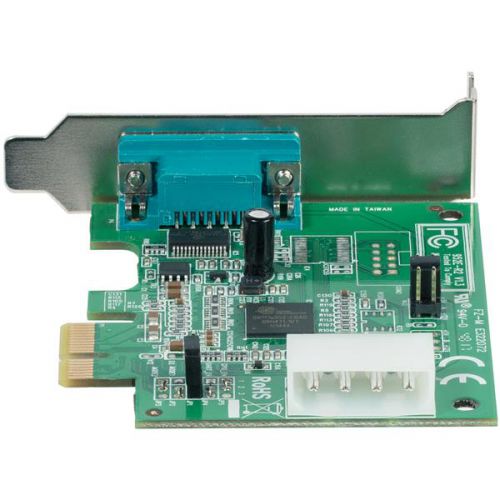

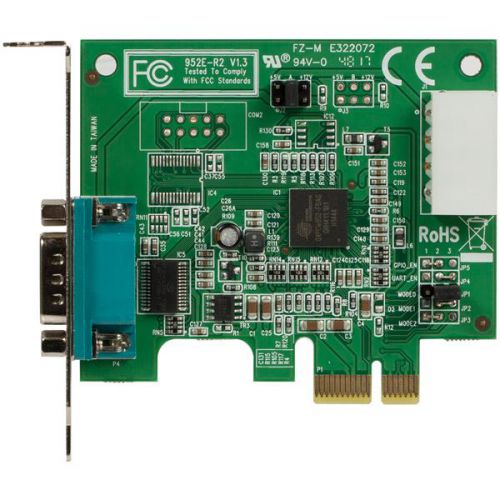

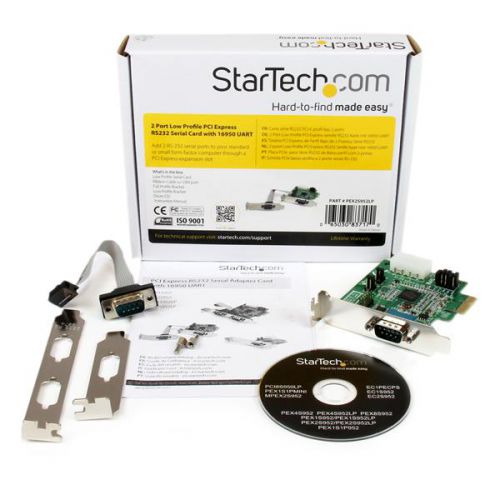

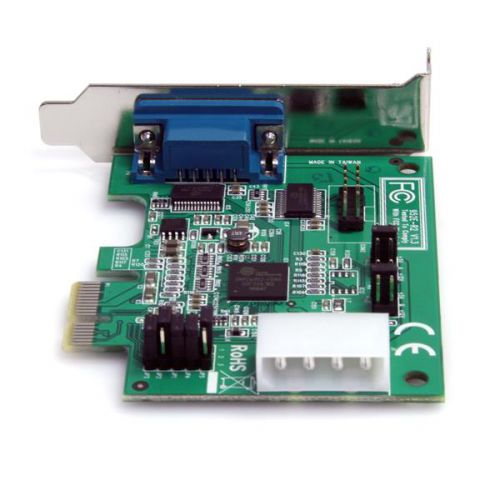

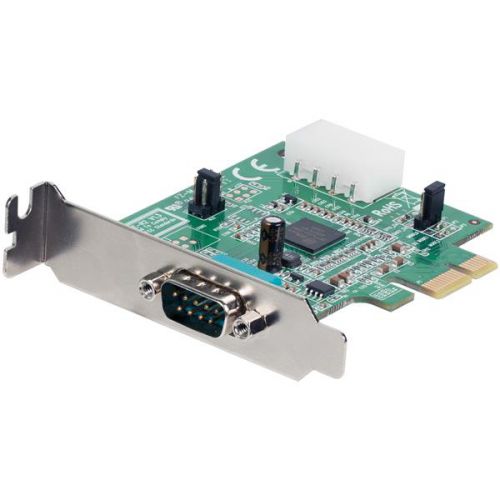

StarTech 2 Port Low Profile RS232 PCIE Serial Car
Product Code: 8STPEX2S952LP
The card is constructed using a native single chip design that lets you harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge chip serial cards.
The PCI Express RS232 Serial Adapter Card is compatible with a broad range of operating systems including Windows® 7/ Server 2008 R2 / Vista/ XP/ 2000, Linux Kernel 2.6.11 to 4.11.x. The card comes pre-configured with a low profile bracket, but also includes an optional full profile bracket that lets you add two serial ports to virtually any computer (regardless of the case form factor).
Backed by a StarTech.com Lifetime warranty and free lifetime technical support.
Category
PCI Cards
Manufacturer StarTech.com
- 128-byte deep FIFO per transmitter and receiver
- Automated in-band software flow control using programmable Xon/Xoff in both directions
- Automated out-of-band hardware flow control using Tx/Rx/RTS/CTS/DSR/DTR/DCD/RI/GND
- Compliant with PCI Express base specifications revision 1.1a
- High Performance Single Channel Oxford 950 UART
- Native single-chip, single lane PCI Express
Description
The card is constructed using a native single chip design that lets you harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge chip serial cards.
The PCI Express RS232 Serial Adapter Card is compatible with a broad range of operating systems including Windows® 7/ Server 2008 R2 / Vista/ XP/ 2000, Linux Kernel 2.6.11 to 4.11.x. The card comes pre-configured with a low profile bracket, but also includes an optional full profile bracket that lets you add two serial ports to virtually any computer (regardless of the case form factor).
Backed by a StarTech.com Lifetime warranty and free lifetime technical support.
Specifications
Lead Time
1
Brand
StarTech.com
Categories
Computer Components
Category
PCI Cards
Connector Type
1 - PCI Express x1 Male
Dimensions
80x90x20mm
External Ports
2 - DB-9 (9 pin, D-Sub) Male
Form
Serial Card
Internal Ports
1 - LP4 (4 pin; Molex-type Large Drive Power) Male
Manufacturer
StarTech
Type
PCI Cards
Warranty
Lifetime Limited Warranty
Weight
46g
